Model No. · Pocket S

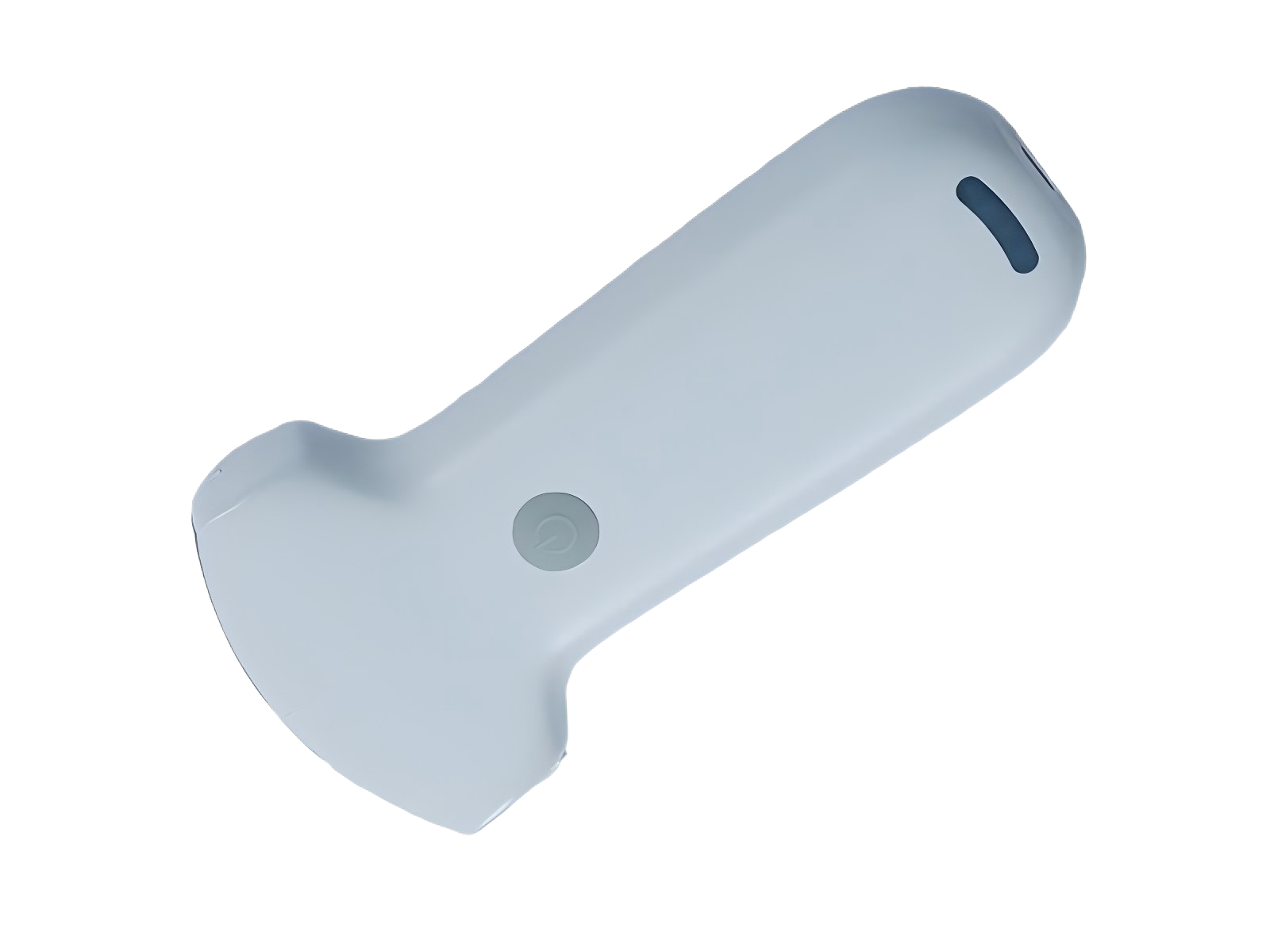

Fincare Pocket S
Portable Wireless Ultrasound System
"Enhanced model with sharper imaging and faster response"
Product Gallery
Device Overview
Why Pocket S
Key Features
True Wireless Freedom
Fully cable-free operation for maximum flexibility across all clinical scenarios.
Ultra-Portable Design
Pocket-sized and lightweight (200 g) for effortless mobility at the point of care.
Sealed & Waterproof Housing
Easy cleaning and disinfection, ensuring safe and hygienic clinical use.
Advanced Doppler Imaging
Supports Color, PDI, and PW for real-time blood flow assessment.
Real-Time Connectivity
Enables instant image sharing and remote diagnosis for efficient collaboration.
All-in-One Clinical Versatility
From abdomen and cardiac to OB/GYN, vascular, MSK, and lung imaging.
Technical Data
Full Specifications
Scanning Technology
Array TypesElectronic Convex · Phased Array · Linear · Transvaginal
Frequency
Convex / Phased3.2 / 5.0 MHz or 3.2 / 4.0 MHz
Linear7.5 / 10 MHz or 10 / 13.2 MHz

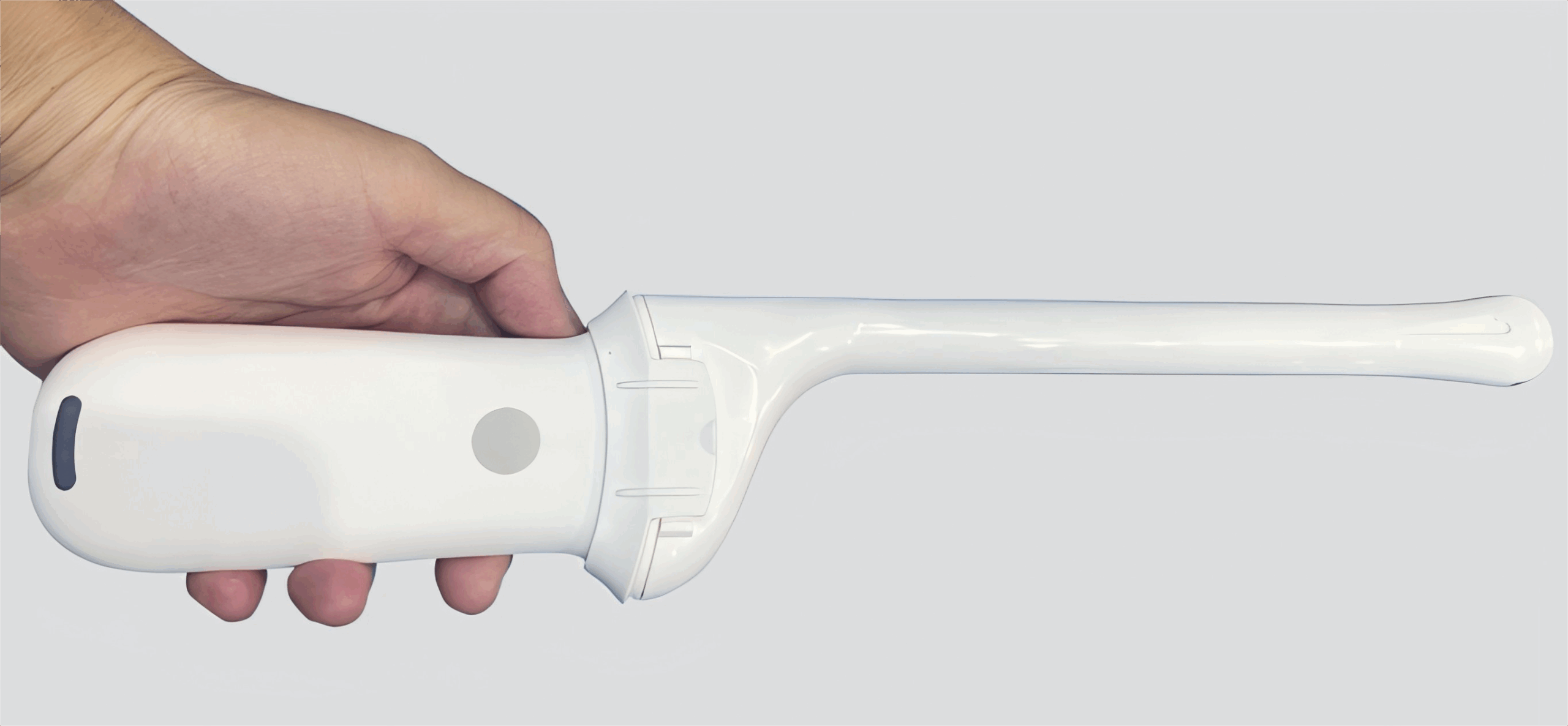

Transvaginal6.0 / 8.0 MHz
Scanning Depth
Convex90 / 160 / 220 / 305 mm
Linear20 / 40 / 60 / 100 mm
Transvaginal30 / 60 / 90 / 120 mm
Imaging Performance
Field of ViewConvex R60 · Phased R80 · Linear L40
Elements128
Channels32
Frame Rate18 fps
Gray Scale256
Dynamic Range40 – 110
Imaging Modes
ModesB · B/M · Color · PDI · PW
Linear Array Doppler
ColorAngle ±12° · PRF ≥4 · Wall Filter 0–15 · Gain 0–10
PWSample 1/2/5 mm · Baseline 0–500 cm/s · PRF ≥4 · Gain 0–100 · Angle ±85°
Convex Array Doppler
ColorPRF ≥4 · Wall Filter 0–15 · Gain 0–10
PWSample 1/2/5 mm · Baseline 0–800 cm/s · PRF ≥4 · Angle ±85°
Cardiac Doppler
ColorPRF ≥4 · Wall Filter 0–15 · Gain 0–100
PWSample 1/2/5 mm · Baseline 0–600 cm/s · PRF ≥4 (USB: 2–20K ≥8) · Angle ±85°
Image Optimization
ToolsGain · Focus · Harmonics · Noise Reduction
Interventional Support
GuidanceIn-plane · Out-of-plane puncture guidance
MeasurementAuto vessel measurement
Connectivity
DisplayAndroid / Windows
WiFi802.11n Dual-band 2.4G / 5G (450 Mbps)
Storage & Playback
FormatsJPG · PNG · MP4 · DICOM
Cine100 / 200 / 500 / 1000 frames
PlaybackManual & Auto
Power & Physical
Battery2800 mAh Lithium · 2 hours working time
Dimensions156 × 55 × 20 mm
Weight200 g
Use Cases
Clinical Applications
Thyroid
Small Parts
Pediatrics
Vascular
Carotid
Breast
MSK
Nerve
Abdomen
OB / GYN
Cardiac
Urinary
Kidney
Lung
Real-World Performance

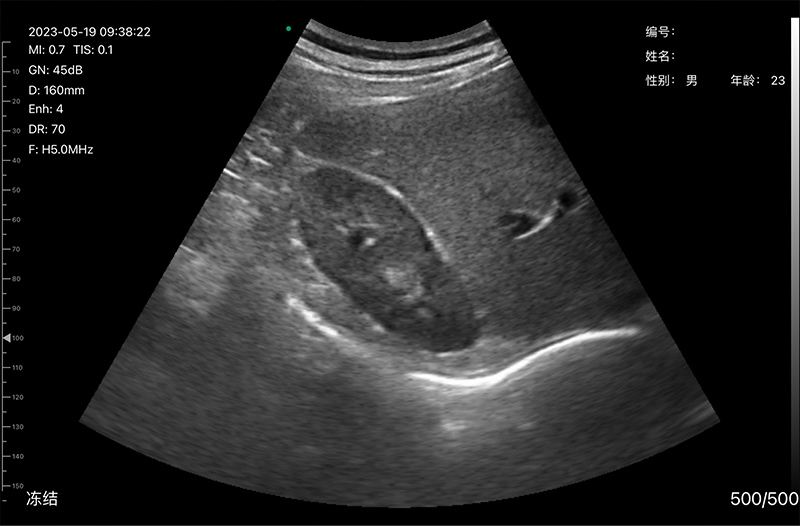

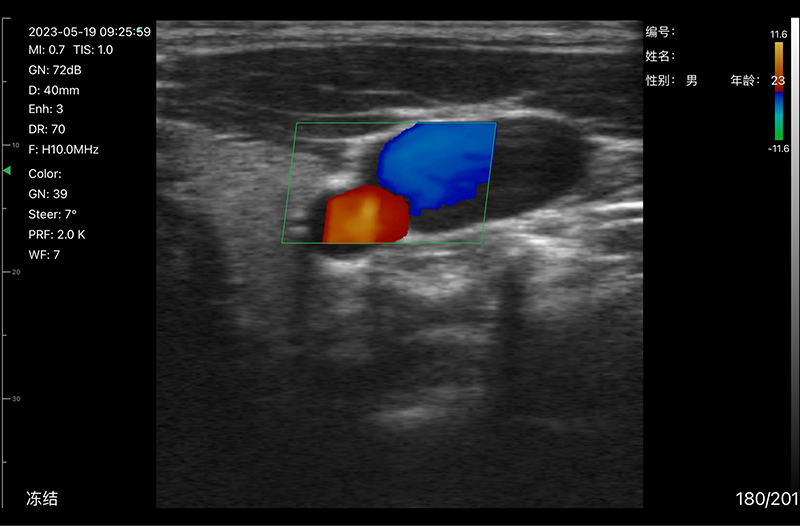

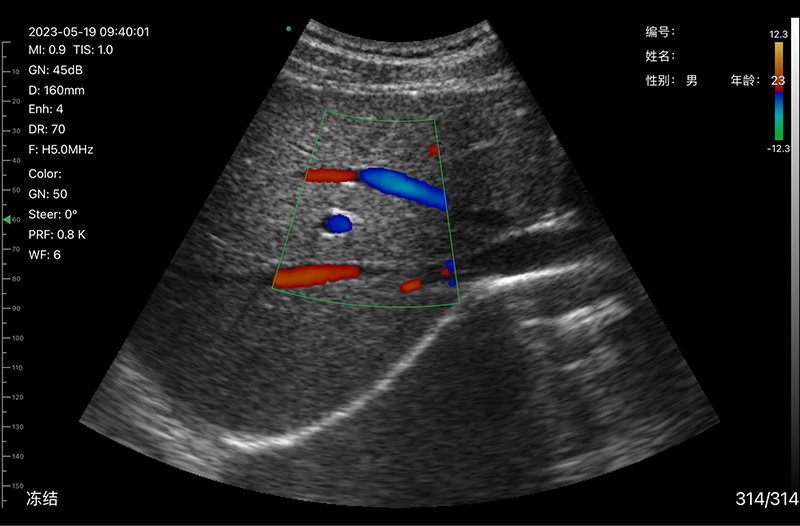

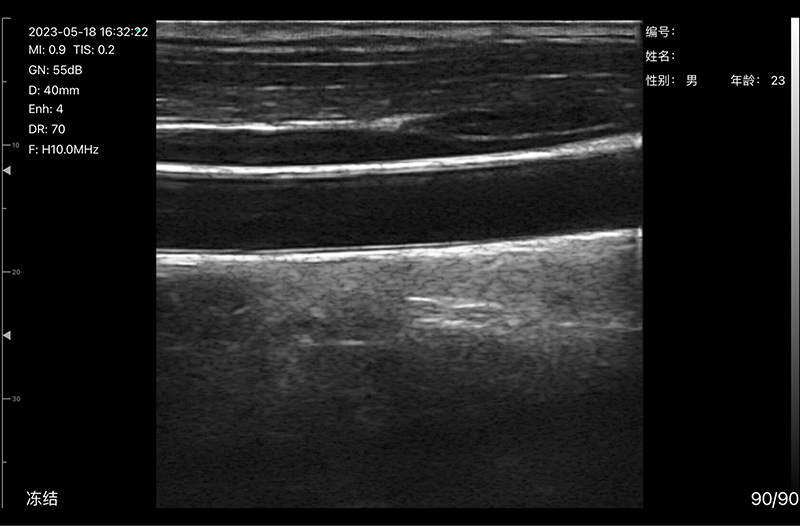

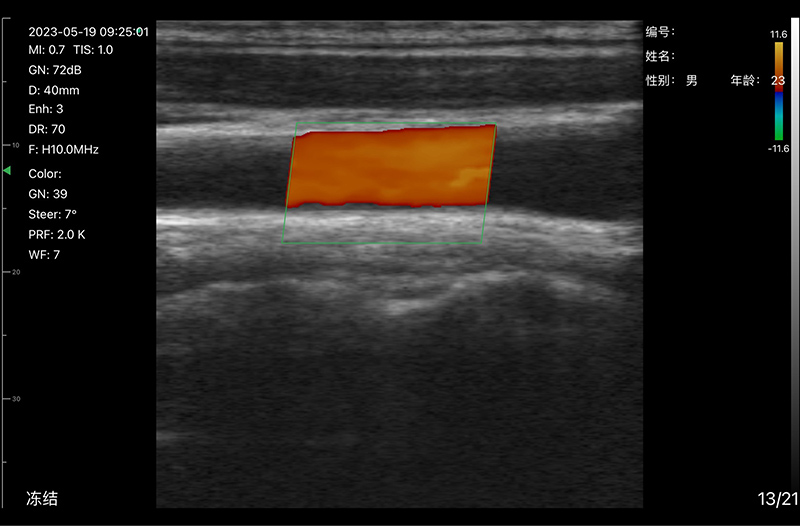

Clinical Imaging Examples
